Elevator rope brake can be used an an as ascending car over speed protection device
8-16mm Rope Dia Elevator Rope Brake / Elevator Safety Parts Gear Speed Governor
Brief introduction:
This rope brake is a product, can be used as an as asscending car over speed protection device, which falls into two types as per the triggering way,ie.mechanical and electromagnetic. The mechanical rope brake:The speed governor drives the braking wire component to trigger the rope brake which will be used together with XS12A and XS12B over speed governor, the electromagnetic rope brake will be used together with XS16,XS18~XS18A over speed governor.

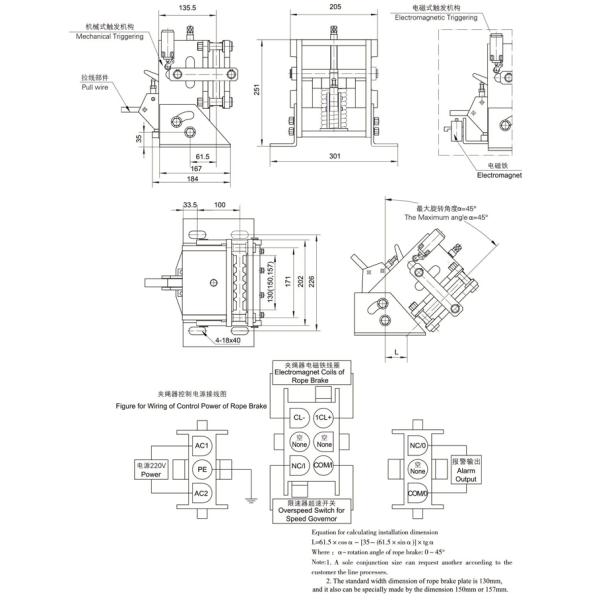

This compression springs are used on this rope brake to provide working force, which is enlarged by wedge iron. The front of the braking block move towards the other plate and clamp the ropes to stop the car safely and hold it still there. The rope brake is compact in structure,convenient to install and the installation angle can be adjusted within 0~45°.
Technical specifications:(for ratio 1:1 or 2:1)
| Rated Speed | Rated load | System mass | Rope Dia |
| V : 0.25~2.50m/s | Q:500~1600kg | 1946~5200kg | 8-16mm |
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
